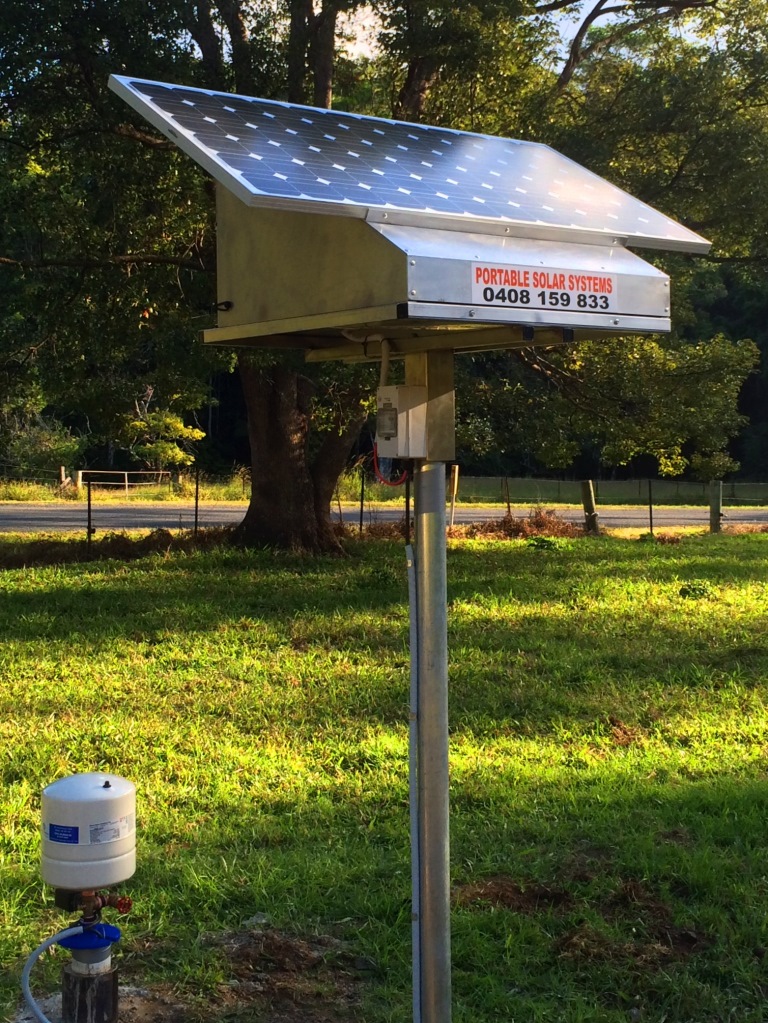

This Product Made By Portable Solar Systems is designed for the D I Y person
It cames fully assembled and installation is very easy
The kit includes :
- 1 x Shur- Flo 24 volt dc pump with cable pre- wired and plug connections
- 30 meters of poly pipe
- bore cap
- pressure switch
- pressure tank and fittings
- 1 x P.S.U with 24 volt x 18 amp deep cycle battery
- Aluminium body with pre- attached Solar panel
- Stainless steel heavy duty frame
Performances:
- Total pressure output of 60 meters or 900 k.p.a from the bore pump level
- Flow rates from 5 liters to 1 liters per minute
- Operation time of 6 hours per day
- Back up power to allow continuous operations during cloudy days
- Automatic pressure system operation providing a 30 psi shut off
Optional Upgrades
- 24 volt or 12 volt continuous power for lights ,USB or Ipod chargers, small camping fridge or electric fence power supply
- Battery upgradeable to two 130 amp hour deep cycle batteries after hour use
- Adding a water pressure battery (W.P.B) will provide pressurised water for night use. Each W.P.B adds 170 to 200 liters of capacity
- 80 mm thick wall gal pipe 1.8 mters long ( but a treated hard wood post of suitable strength localy sources should be ok)
